Super Arch
Rubber Fender

Super Arch Rubber Fenders are new generation of V type Rubber Fender. Super Arch Rubber fenders are simple and rugged which make them can be used in most severe conditions. Super Arch Rubber Fender can be fitted with face pads or connected to steel panels.

Get a quote

Related Products

We provide all types of fenders, such as Super Cell Rubber Fender, Super Cone Rubber Fender, Arch Rubber Fender, Cylindrical Rubber Fender, D Type Rubber Fender, etc.

Super Arch Rubber Fender Advantages

Low reaction force, high energy absorption.
Simple and reasonable structure,long service time.
Can be fitted with frontal panel,protect fenders and low down the HP.
Large range of standard sizes,meet various design conditions.

Super Arch Rubber Fender Application

Multi-user berths｜Small RoRo terminals｜Workboat berths｜Pontoon fenders

Super Arch Rubber Fender

Super Arch Rubber Fender

Super Arch Rubber Fender

Super Arch Rubber Fender

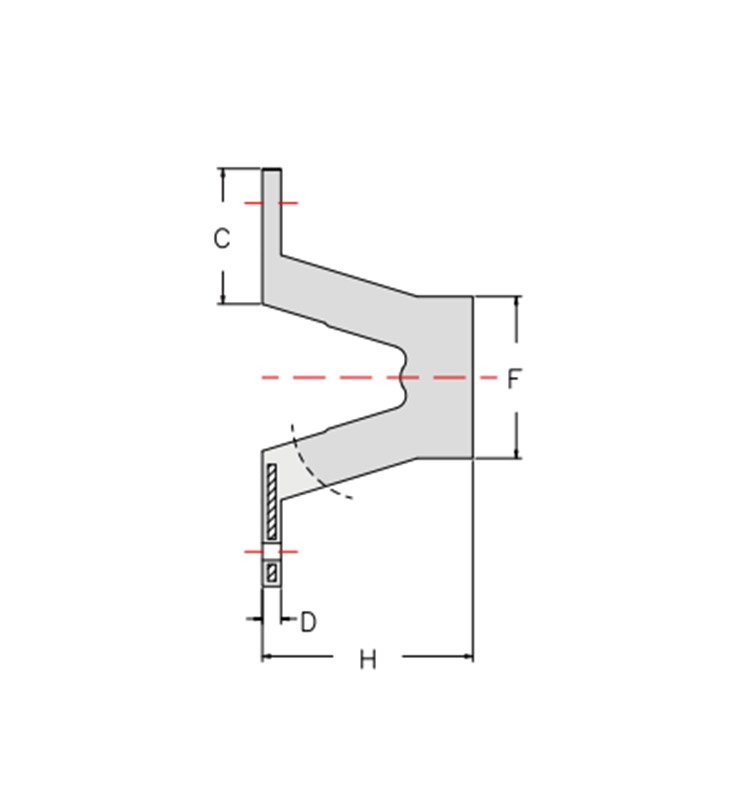

Super Arch Rubber Fender Size Structure

150H
200H
250H
300H
400H
500H
600H
800H
1000H

SPEC.	150H
L1	1000	1500	2000	2500	3000	3500
L	1075	1575	2075	2575	3075	3075
n	2	3	4	4	5	6
E	855	675	620	785	715	671
K	110	112.5	107.5	110	107.5	110

SPEC.	200H
L1	1000	1500	2000	2500	3000	3500
L	1100	1600	2100	2600	3100	3600
n	2	3	4	4	5	6
E	860	680	620	785	715	672
K	120	120	120	122.5	120	120

SPEC.	250H
L1	1000	1500	2000	2500	3000	3500
L	1125	1625	2125	2625	3125	3625
n	2	3	4	4	5	6
E	865	680	620	790	715	673
K	130	132.5	132.5	127.5	132.5	130

SPEC.	300H
L1	1000	1500	2000	2500	3000	3500
L	1150	1650	2150	2650	3150	3650
n	2	3	4	4	5	6
E	870	685	625	790	715	674
K	140	140	137.5	140	145	140

SPEC.	400H
L1	1000	1500	2000	2500	3000	3500
L	1200	1700	2200	2700	3200	3700
n	2	3	4	4	5	6
E	900	700	635	800	725	680
K	150	150	147.5	150	150	150

SPEC.	500H
L1	1000	1500	2000	2500	3000	3500
L	1250	1750	2250	2750	3250	3750
n	2	3	4	4	5	6
E	930	715	645	810	730	686
K	160	160	157.5	160	165	160

SPEC.	600H
L1	1000	1500	2000	2500	3000	3500
L	1300	1800	2300	2800	3300	3800
n	2	3	4	4	5	6
E	960	730	655	820	740	692
K	170	170	167.5	170	170	170

SPEC.	800H
L1	1000	1500	2000	2500	3000	3500
L	1400	1900	2400	2900	3400	3900
n	2	3	4	4	5	6
E	1040	770	680	845	760	885
K	180	180	180	182.5	180	180

SPEC.	1000H
L1	1000	1500	2000	2500	3000
L	1500	2000	2500	3000	3500
n	2	3	4	4	5
E	1100	800	700	860	775
K	200	200	200	210	200

Super Arch Rubber Fender Performance

RS: Super high Reaction Force
RH: High Reaction Force
RO: Standard Reaction Force
RL: Low Reaction Force
R: Reaction Force
E: Energy Ab sorption
Deflection: 52.5%
Maximum Deflection: 55%
*150H:Rated Deflection: 45%
Performance tolerance: ±10%

SPEC.			150H*	200H	250H	300H	400H	500H	600H	800H	1000H
PERFORMANCE			150H*	200H	250H	300H	400H	500H	600H	800H	1000H
RS	52.50%	R	129	170	270	325	430	540	645	864	1080
	52.50%	E	7	11	28	41	73	113	163	290	450
	55.00%	R	174	230	375	450	600	750	895	1200	1490
	55.00%	E	8	14	30	44	78	120	175	310	486

SPEC.			150H*	200H	250H	300H	400H	500H	600H	800H	1000H
PERFORMANCE			150H*	200H	250H	300H	400H	500H	600H	800H	1000H
RH	52.50%	R	112	150	208	248	330	415	495	664	830
	52.50%	E	6	12	22	31	55	87	125	223	349
	55.00%	R	151	202	288	345	460	575	690	922	1150
	55.00%	E	7	13	23	33	60	93	135	239	374

SPEC.			150H*	200H	250H	300H	400H	500H	600H	800H	1000H
PERFORMANCE			150H*	200H	250H	300H	400H	500H	600H	800H	1000H
RO	52.50%	R	84	112	172	206	275	344	412	550	688
	52.50%	E	4	10	18	26	46	72	104	185	289
	55.00%	R	113	152	239	286	382	478	572	764	956
	55.00%	E	5	11	19	28	49	77	111	198	310

SPEC.			150H*	200H	250H	300H	400H	500H	600H	800H	1000H
PERFORMANCE			150H*	200H	250H	300H	400H	500H	600H	800H	1000H
RL	52.50%	R	56	75	148	175	235	295	354	472	590
	52.50%	E	3	6	16	22	40	62	89	159	248
	55.00%	R	76	105	205	245	328	410	492	655	820
	55.00%	E	4	7	17	24	43	66	95	170	265
